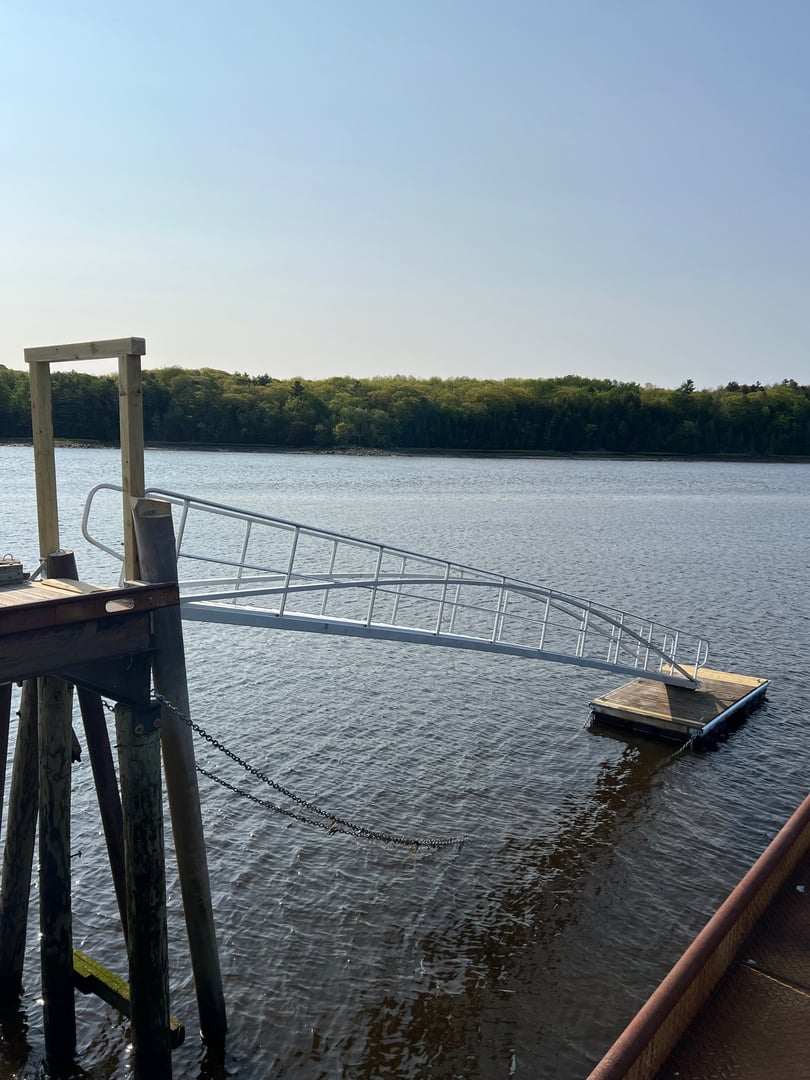

Original Arch Stye Ramp

Most popular both residential and commercial.

Standard widths are 3’ and 4’, not limited, custom widths available. Lengths 20’ to 60’.

Standard 60 lbs/sq.ft live load, adhering to OSHA guidelines, higher loads ratings available.

Constructed with our proprietary 4 ½” and 5” extruded box stringer design.

Standard decking is our proprietary design of 8” all aluminum in both flat and skid strip.

Decking options are available upon request this includes wooden, Aluminum I- Bar grating, and Thru-flow.

Midrails through each stanchion, allowing water or electrical service.

Residential and Commercial

Rees Ramps offers two sizes of our proprietary box stringers. This allows us to build a lighter weight ramp for residential applications. Making installation in the spring and removal in the fall much easier. Our larger box stringers are more commonly used commercially, which requires a higher lb.sq.ft and or a larger ramp. Both residential and commercial ramps can be built fully ADA compliant.

Truss Style Ramps

Standard widths are 3” and 4’, not limited to, custom widths available.Lengths 10’ to 80’.

Standard 60 ibs/sq.ft live load ratings, higher loads available.

Decking options are standard 8” all aluminum non-skid decking in flat and skid strip, thru-flow, or wood.

Both Arch and Truss Style Ramps would come with an all welded low-profile roller assembly at float end. There are several choices for pier end connection. All welded aluminum, stainless or steel fork designs. Depending on tide conditions we will recommend and accommodate.

Fully ADA Compliant Specifications available for Arch and Truss Ramps

These ramps are specifically designed to meet all ADA Handicapped accessibility standards

42” top rails with

• 34” handicap rails with continuous returns
• 4” toe-kicks
• All built with 60 lb/sq.ft. live load minimum, higher loads available
• Transition plates both ends
• Decking options, adhering to ¼’ space max, include 8” all aluminum non-skid decking with alternating skid strip, wooden, and (need to get name of ADA grating)
