Standard widths are 5’ and 6’, not limited to in lengths up to 60’.

Standard 60 lbs./sq.ft live load rating with higher loads available.

Handrail options include aluminum and wooden.

Decking options include all aluminum 8” non-skid alternating flat and skid strip, Wood, Thru-flow.

Several mounting options available and will recommend.

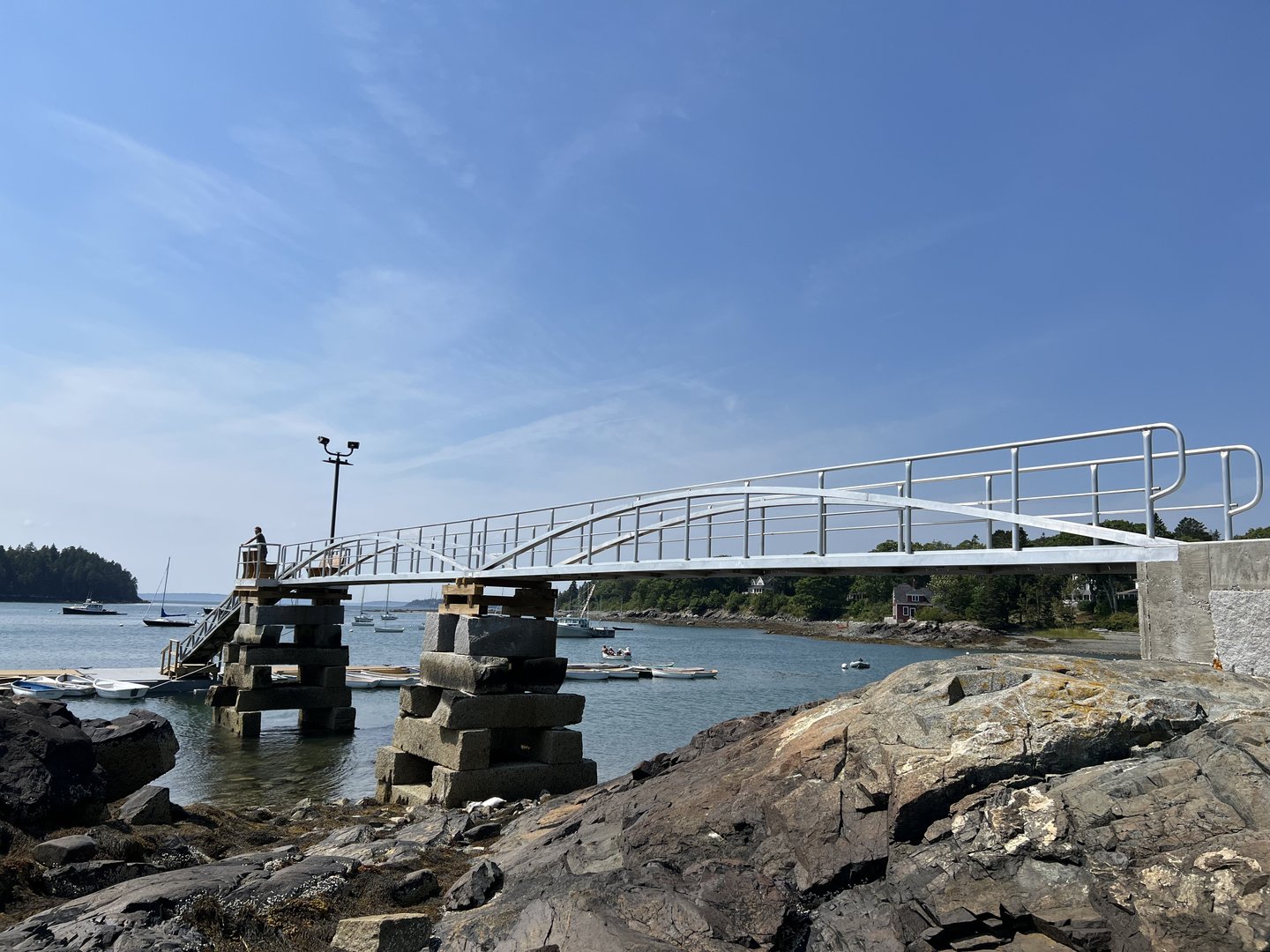

Aluminum Arch Style Pier Sections come in standard 5’ and 6’ widths but are not limited to, with lengths from 10’ to 50’. All decking options are available, our most popular being our propriety 8” aluminum skid with alternating non-skid planks. Top-rail options include aluminum, wooden and composite.

Decking options include our most popular standard 8” non-skid plank alternating with low-profile
anti-skid strips.

• Pressure treated
• Ipe
• Exotic woods
• Aluminum I-Bar
• ADA Compliant aluminum grating
• Composite Thru-flow

We offer a variety of attachments for our ramps and pier sections that include:

• ½” 6061-T Aluminum welded tabs with stainless steel bushing.
• Aluminum welded 4-Hole mounts (for lengths 40’ and under).
• Aluminum welded 6-Hole mounts (for over 40’).
• Stainless steel welded Trailing links (straight and offset) for areas on the coast that experience stronger currents and tides.
• Welded Steel forks and eyes.

Options

Pier and Float transition plates. Fully welded aluminum diamond plate with UHMW black wear strip. These are used when you have gaps or grade changes coming on and off the ramp. Wear pad for the float end. 4’x5’ flat aluminum plate to protect the float end from roller wear due to tide changes. These both come sandblasted which we do in house to cut down on glare and promote a slip- free surface.

• Benches for seating
• Light poles
• Electrical boxes
• Welded side channel for hoses
